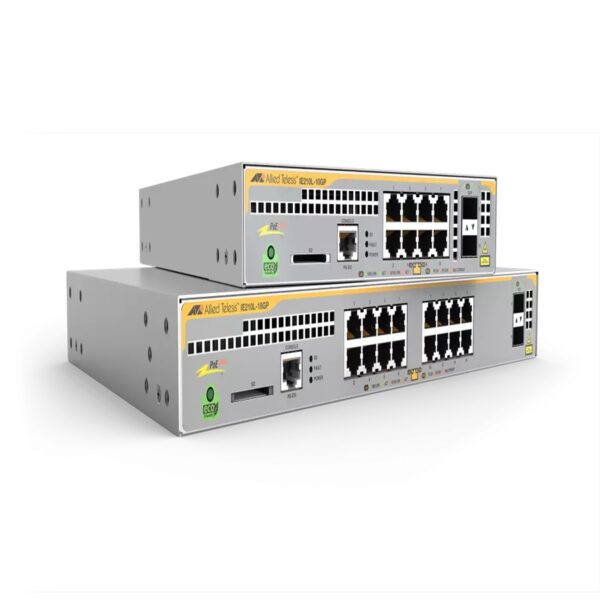

Allied Telesis IE210L Series Extended Temperature Layer 2 Switches Price in Doha, Qatar
The IE210L Series Gigabit Layer 2 switches are designed for enduring performance at high ambient temperatures, making them ideal for manufacturing, retail, building digitalization, and other lite industrial environments demanding a reliable and resilient network solution.
- Description
- Reviews (0)
Description
Description
Overview
- Supports all applications in environments with extended temperature operation of 0°C to 65°C
- Connect and power cameras, building sensors, and other IoT devices with a single Ethernet connection
- Secure industrial networks with multi-layer user access, network, and traffic control features
- Enable resilient campus-wide connectivity with EPSRing and G.8032 ERPS for fast-failover in ring networks
- Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
Key Features
- AlliedWare Plus™ Enterprise-class operating system
- PoE power up to 30W (PoE+) per port
- OpenFlow certified for SDN applications
- Unlock additional functionality with advanced feature licenses
- Web-based GUI or industry standard CLI for easy management
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 100/1000X SFP Ports | Total Ports | PoE Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|
| IE210L-10GP | 8 | 2 | 10 | 8 | 20Gbps | 14.9Mpps |
| IE210L-18GP | 16 | 2 | 18 | 16 | 36Gbps | 26.8Mpps |
Physical
| Product | Width x Depth x Height | Unpackaged Weight | Packaged Weight | Packaged Dimensions |
|---|---|---|---|---|
| IE210L-10GP | 210 x 275 x 42.5 mm (8.27 x 10.83 x 1.67 in) |
2.1 kg (4.6 lb) | 3.45 kg (7.6 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
| IE210L-18GP | 341 x 275 x 42.5 mm (13.42 x 9.09 x 1.73 in) |
3.0 kg (6.6 lb) | 4.35 kg (9.6 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
Power and Noise Characteristics
| Product | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise | Full PoE+ Load Max Power Consumption | Full PoE+ Load Max Heat Dissipation | Full PoE+ Load Noise |
|---|---|---|---|---|---|---|
| IE210L-10GP | 16W | 55 BTU/h | 33 dBA (at 30C ambient) |
180W | 126 BTU/h | 60 dBA (at 50C ambient and 124W POE output) |
| IE210L-18GP | 21W | 72 BTU/h | 33 dBA (at 30C ambient) |
330W | 169 BTU/h | 60 dBA (at 50C ambient and 124W POE output) |
Power over Ethernet
| Product | Max PoE Power | 7.5W PoE Sourcing Ports | 15.4W PoE Sourcing Ports | 30W PoE+ PoE Sourcing Ports |
|---|---|---|---|---|
| IE210L-10GP | 124W | 8 | 8 | 4 |
| IE210L-18GP | 247W | 16 | 16 | 8 |
