Description
Overview

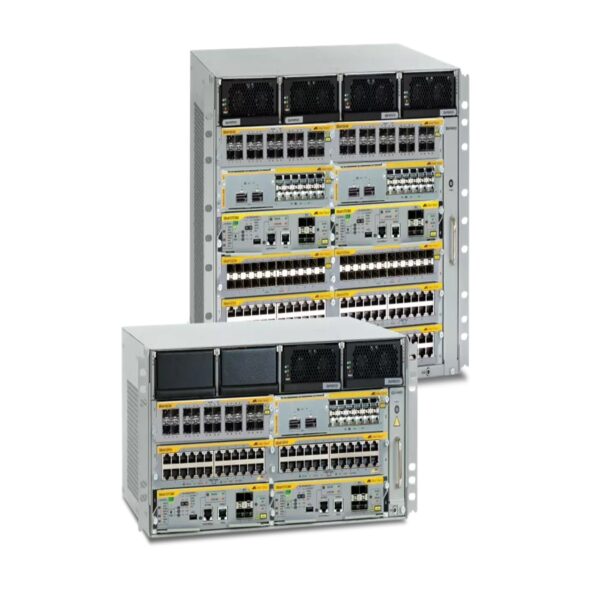

- Designed to deliver high availability, wirespeed performance and a high port count
- Highly resilient design includes dual controllers, dual PSUs and dual redundant passive backplane paths
- Dual control cards are partnered with four or ten line card slots in the 6 or 12 slot chassis
- Gigabit and 10 Gigabit line card options
- High-efficiency power supplies and low-power chip sets
Key Features
- SBx81XLEM 40G modular line card
- Allied Telesis Autonomous Management Framework™ Plus (AMF Plus)
- Active Fiber Monitoring™ (AFM)
- Policy-based routing
- Microsoft Network Load Balancing (MS NLB) support
Specifications
| Product |
Dimensions (WxDxH) |
Weight |
Package dimensions (WxDxH) |
Package weight |
| SBx8112 chassis |
48.0 x 38.8 x 31.0 cm |
17.8 kg (39.1 lb) |
58.2 x 50.6 x 50.6 cm |
22.5 kg (49.6 lb) |
| SBx8106 chassis |
48.0 x 38.8 x 17.6 cm |
14.4 kg (31.8 lb) |
58.2 x 50.6 x 50.6 cm |
18.1 kg (39.9 lb) |
| SBx81CFC960 controller fabric card |
20.7 x 31.3 x 4.1 cm |
1.1 kg (2.3 lb) |
38.1 x 27.1 x 10.0 cm |
2.0 kg (4.4 lb) |
| SBx81GP24 PoE+ line card |
20.7 x 31.3 x 4.1 cm |
1.1 kg (2.3 lb) |
38.1 x 27.1 x 10.0 cm |
1.5 kg (3.3 lb) |
| SBx81GT24 line card |
20.7 x 31.3 x 4.1 cm |
1.1 kg (2.3 lb) |
38.1 x 27.1 x 10.0 cm |
1.4 kg (3.1 lb) |
| SBx81GS24a SFP line card |
20.7 x 31.3 x 4.1 cm |
1.1 kg (2.3 lb) |
38.1 x 27.1 x 10.0 cm |
2.0 kg (4.4 lb) |
| SBx81GC40 line card |
20.7 x 31.3 x 4.1 cm |
1.1 kg (2.3 lb) |
38.1 x 27.1 x 10.0 cm |
2.0 kg (4.4 lb) |
| SBx81XLEM 40G modular line card |
20.7 x 31.3 x 4.1 cm |
1.1 kg (2.3 lb) |
38.1 x 27.1 x 10.0 cm |
2.0 kg (4.4 lb) |
| SBxPWRSYS2 AC system PSU |
10.2 x 32.2 x 4.3 cm |
2.8 kg (6.1 lb) |
32.6 x 42.1 x 17.7 cm |
3.5 kg (7.7 lb) |
| SBxPWRSYS1-80 DC system PSU |
10.2 x 32.2 x 4.3 cm |
2.8 kg (6.1 lb) |
32.6 x 42.1 x 17.7 cm |
3.9 kg (8.6 lb) |
| SBxPWRPOE1 PoE+ power supply |
10.2 x 32.2 x 4.3 cm |
2.7 kg (6.0 lb) |
32.6 x 42.1 x 17.7 cm |
3.9 kg (8.7 lb) |
| SBxFAN12 fan tray |
2.7 x 33.4 x 26.0 cm |
1.8 kg (4.0 lb) |
21.0 x 42.9 x 11.3 cm |
2.9 kg (6.4 lb) |
| SBxFAN06 fan tray |
2.6 x 29.8 x 10.3 cm |
0.86 kg (1.9 lb) |
35.4 x 42.9 x 11.3 cm |
1.8 kg (3.9 lb) |
Capacity/Forwarding
Control and line card switching capacity and forwarding rates (per card)
| Product |
Switching capacity |
Forwarding rate |
| SBx81CFC960 |
80Gbps |
60Mpps |
| SBx81XLEM (+ module) |
184Gbps |
137Mpps |
| SBx81GT24 |
48Gbps |
36Mpps |
| SBx81GP24 |
48Gbps |
36Mpps |
| SBx81GS24a |
48Gbps |
36Mpps |
| SBx81GC40 |
80Gbps |
60Mpps |
Power consumption
| Product |
Maximum |
Heat dissipation |
| SBx81CFC960 |
75.0W |
255.9 BTU/hr |
| SBx81GP24 |
34.4W |
117.4 BTU/hr |
| SBx81GT24 |
34.4W |
117.4 BTU/hr |
| SBx81GS24a |
56.3W |
192.1 BTU/hr |
| SBx81GC40 |
64.0W |
272.8 BTU/hr |
| SBx81XLEM |
44W |
150.1 BTU/hr |
| SBx81XLEM (+ module) |
65W |
221.8 BTU/hr |
PoE Power provisioning
Maximum number of ports that can be powered (with 2 x AT-SBxPWRPOE1 installed)
| Product |
PoE Power |
Class 3 (15.4W) |
Class 4 (30W) |
| PSUs in redundant mode |
1200W |
77 |
40 |
| PSUs in boost mode |
2400W |
155 |
80 |
