Allied Telesis UMC Series Fast Ethernet and Gigabit Fiber to USB Media Converters Price in Doha Qatar

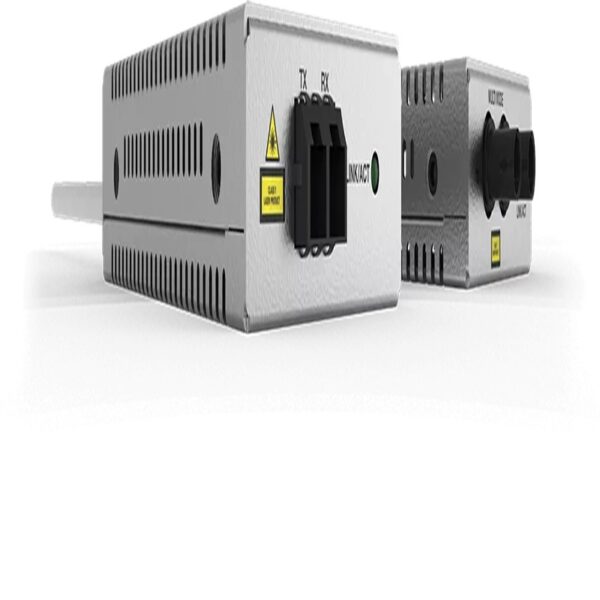

Allied Telesis UMC200 and UMC2000 USB media converters are the perfect fit for devices using today’s USB-A (USB1, 2 & 3) technology, as well as those using next-generation USB-C connectivity.
- Description
- Reviews (0)
Description
Description
Overview
- Comes with two types of USB cables allowing for use with older USB-A and new USB-C products
- Models with network support for 100Mbps and 1Gbps and different fiber connector options
- Compact size for flexible deployment
- Dynamic power management reduces running cost
Key Features
- Suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
- Auto-detach power saving, with soft-disconnect from USB hosts
- Advanced link down power saving if Ethernet cable is unplugged
- IEEE 802.1P Layer 2 priority encoding and decoding
- IEEE 802.1Q VLAN tagging and VLAN ID filtering
- Jumbo frames support of up to 4KB
- Available in Trade Agreement Act (TAA) compliant models (-901)
Specifications
| Module | Width x Depth x Height | Weight | Media Conversion | Power |
|---|---|---|---|---|
| UMC200/SC | 5.49 x 10.16 x 2.18 cm (2.16 x 4.00 x 0.86 in) |
170 g (6 oz) | USB (-A or -C) to 100FX/SC | Powered from PC USB port |
| UMC200/ST | 5.49 x 10.16 x 2.18 cm (2.16 x 4.00 x 0.86 in) |
170 g (6 oz) | USB (-A or -C) to 100FX/ST | Powered from PC USB port |
| UMC2000/SC | 5.49 x 10.16 x 2.18 cm (2.16 x 4.00 x 0.86 in) |
170 g (6 oz) | USB (-A or -C) to 1000SX/SC | Powered from PC USB port |
| UMC2000/LC | 5.49 x 10.16 x 2.18 cm (2.16 x 4.00 x 0.86 in) |
170 g (6 oz) | USB (-A or -C) to 1000SX/LC | Powered from PC USB port |
| UMC2000/SP | 5.49 x 10.16 x 2.18 cm (2.16 x 4.00 x 0.86 in) |
170 g (6 oz) | USB (-A or -C) to SFP (100MB or Gigabit) | Powered from PC USB port |
Fiber
| Model | Fiber Type | Fiber Optic Diameter | Optical Wavelength (nm) | Min Launch Power (dBm) | Max Launch Power (dBm) | Min Effective Power (dBm) | Typical Effective Power (dBm) | Saturation Effective Power (dBm) | Max Distance |
|---|---|---|---|---|---|---|---|---|---|
| UMC200 | MMF | 62.5/125 | 1310 nm | -20 | -14 | -32 | -34 | -3 | 2 km |
| UMC2000 | MMF | 50/125 | 850 nm | -9.5 | -4 | -17 | -20 | -3 | 500 m |
| MMF | 62.5/125 | 850 nm | -9 | -4 | -17 | -20 | -3 | 220 m |
