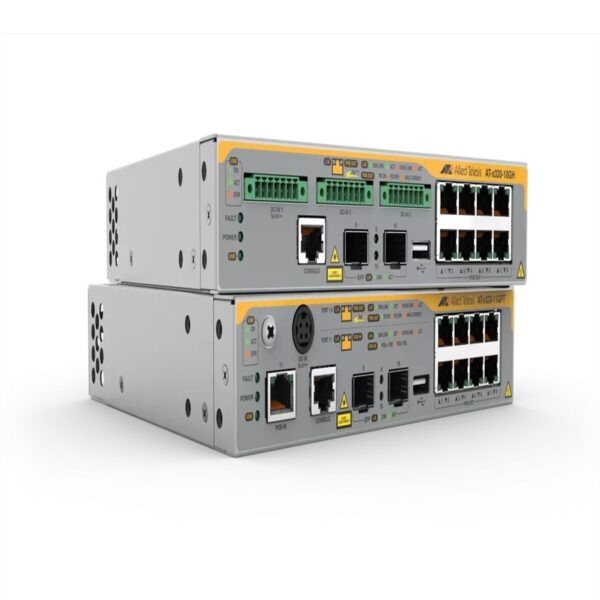

Allied Telesis x320 Series Gigabit PoE++ Layer 3 Managed Switches Price in Doha, Qatar
Flexible Power over Ethernet switches with capabilities that support IoT device connectivity in smart buildings and converged business environments.
- Description
- Reviews (0)
Description
Description
Overview
- Enable today’s smart buildings with flexible PoE to connect and power devices such as high-resolution security cameras, wireless APs, lighting controllers, and more
- Flexible deployment of network edge switches and IoT devices, with PoE pass-through that powers both the edge switch and connected end-points
- Provide PoE capacity and resilience with triple external PSUs available for distribution switches, while also simplifying UPS power redundancy of the network
- Extend network layout, with IoT devices able to be connected and powered up to 200 meters from the PoE distribution source
- Reduce costs and automate network and device management with Allied Telesis Autonomous Management Framework™ Plus (AMF Plus)
Key Features
- AlliedWare Plus™ Enterprise-class operating system
- 90W PoE++ per port (x320-10GH) for high power devices, or for powering the x320-11GPT and its connected devices with PoE pass-through
- 30W PoE+ per port (x320-11GPT) for connecting and powering end devices
- Continuous PoE maximizes end-point connectivity
- Fanless design for high-reliability and silent operation
- DIN rail mount supports flexible deployment in ceilings, and other building spaces
Specifications
| Product | 10/100/1000T (RJ-45) PoE Enabled Ports | 10/100/1000T (RJ-45) PoE-in Ports | 1000X SFP Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|
| x320-10GH | 8 | – | 2 | 24Gbps | 14.9Mpps |
| x320-11GPT | 8 | 1 | 2 | 24Gbps | 16.4Mpps |
Physical
| Product | Width x Depth x Height | Mounting | Unpackaged Weight | Packaged Weight | Packaged Dimensions |
|---|---|---|---|---|---|
| x320-10GH | 210 x 180 x 42.5 mm (8.26 x 7.08 x 1.67 in) |
Rack-mount | 1.6 kg (3.53 lb) | 2.7 kg (5.95 lb) | 417 x 336 x 151 mm (16.42 x 13.23 x 1.67 in) |
| x320-11GPT | 210 x 180 x 42.5 mm (8.26 x 7.08 x 1.67 in) |
Rack-mount | 1.6 kg (3.53 lb) | 3.5 kg (7.71 lb) | 417 x 336 x 151 mm (16.42 x 13.23 x 1.67 in) |
Power Characteristics
| Product | Maximum PoE Power | 7.5W Maximum PoE Ports Supported | 15.4W Maximum PoE Ports Supported | 30W PoE+ Maximum PoE Ports Supported | 60W PoE++ Maximum PoE Ports Supported | 90W PoE++ Maximum PoE Ports Supported | No PoE Load Max Power Consumption (W) | No PoE Load Max Heat Dissipation (BTU/h) | Full PoE Load Max Power Consumption (W) | Full PoE Load Max Heat Dissipation (BTU/h) |
|---|---|---|---|---|---|---|---|---|---|---|
| x320-10GH | 240W (PWR300 x 1) | 8 | 8 | 8 | 4 | 2 | 21 | 71 | 320 | 218 |
| 480W (PWR300 x 2) | 8 | 8 | 8 | 8 | 5 | 21 | 71 | 600 | 409 | |
| 720W (PWR300 x 3) | 8 | 8 | 8 | 8 | 8 | 21 | 71 | 880 | 600 | |
| x320-11GPT | 0W (switch powered by 30W PoE) (1) | 0 | 0 | 0 | 0 | 0 | 22 | 75 | 98 (using AC power adapter) | 350 (using AC power adapter) |
| 31.6W (switch powered by 60W PoE) (1) | 4 | 2 | 1 | 0 | 0 | 22 | 75 | 98 (using AC power adapter) | 350 (using AC power adapter) | |
| 46.2W (switch powered by 90W PoE) (1) | 6 | 3 | 1 | 0 | 0 | 22 | 75 | 98 (using AC power adapter) | 350 (using AC power adapter) | |
| 62W (switch powered by AC Adaptor) | 8 | 4 | 2 | 0 | 0 | 22 | 75 | 98 (using AC power adapter) | 350 (using AC power adapter) |
