| Device Type |
UPS – rack-mountable / external |
| Height (Rack Units) |
6U |
| Color |
Black |
| UPS Technology |
On-line |
| Input Voltage |
AC 208 V |
| Input Voltage Range |
AC 160 – 275 V |
| Frequency Provided |
50/60 Hz |
| Frequency Required |
40 – 70 Hz |
| Input Connectors |
Hardwire 3-wire (2PH + G) |
| Power Output Connectors Details |
1 x hardwire 3-wire (2PH + G) ¦ 6 x power NEMA L6-30 |
| Output Voltage |
AC 208/240 V ± 2% – 50/60 Hz |
| Power Capacity |
10 kW / 10000 VA |
| Output Waveform |
Sinewave |
| Surge Suppression |
Yes |
| Surge Energy Rating |
480 Joules |
| Technology |
Lead acid |
| Run Time (Up To) |
4 min at full load ¦ 11 min at half load |
| Recharge Time |
1.5 hour(s) |
| Features |
Maintenance free, sealed, leak-proof |
| Remote Management Interface |
Ethernet 10/100, USB |
| Interfaces |
1 x management (Ethernet) – RJ-45 ¦ 1 x management (USB) – 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial – RJ-45 |
| Expansion Slots |
1 (total) / 1 (free) x SmartSlot |
| Compliant Standards |
NOM, UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20 |
| ENERGY STAR |
Yes |
| Service & Support |
Limited warranty – 3 years ¦ Limited warranty – batteries – 2 years |
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
0 – 95% (non-condensing) |
| Sound Emission |
55 dBA |
| Width |
17 in |
| Depth |
28.1 in |
| Height |
10.4 in |
| Weight |
245.99 lbs |
| Shipping Width |
23.6 in |
| Shipping Depth |
39.4 in |
| Shipping Height |
18.1 in |
| Shipping Weight |
278.99 lbs |
| Product Description |

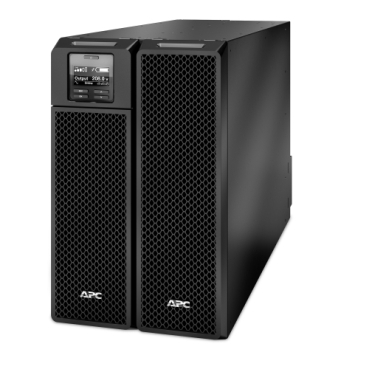

APC Smart-UPS SRT 10000VA – UPS – 10 kW – 10000 VA |
| Rack Size |
6U |
| Output connectors |
1 x hardwire 3-wire (2PH + G) ¦ 6 x power NEMA L6-30 |
| Battery |
Lead acid |
| Networking |
Ethernet 10/100, USB |
| Dimensions (WxDxH) |
17 in x 28.1 in x 10.4 in |
| Environmental Standards |
ENERGY STAR |
| Manufacturer Warranty |
3-year warranty |
| manufacturer |
Schneider Electric |
