Belden 1502R price in Doha Qatar. The Best Belden Supplier in Doha Qatar
Belden 1502R 305Mtr/Roll
Product Features:
Multimedia Control Cable, 1 Pair 22 AWG stranded (7×30) tinned copper (data) with FPE insulation, Beldfoil® shield, drain, 2 Conductor 18 AWG stranded (16×30) tinned copper conductor (power) with F-R PVC insulation, unshielded, Riser, F-R PVC jacket.
- Description
- Reviews (0)
Description
Description

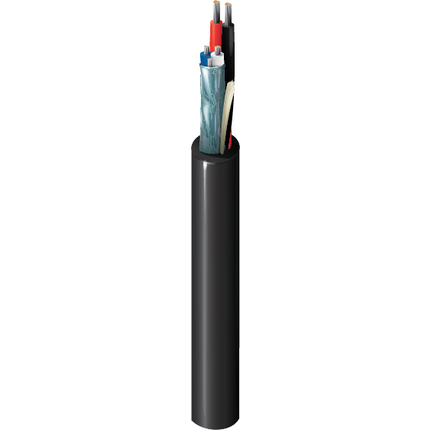

Belden 1502R
Product Features:
Multimedia Control Cable, 1 Pair 22 AWG stranded (7×30) tinned copper (data) with FPE insulation, Beldfoil® shield, drain, 2 Conductor 18 AWG stranded (16×30) tinned copper conductor (power) with F-R PVC insulation, unshielded, Riser, F-R PVC jacket.
| Environmental Space: | Indoor – Riser |
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Conductors | No. of Pairs |
|---|---|---|---|---|
| 22 | 7×30 | TC – Tinned Copper | 2 | 1 |
| 18 | 16×30 | TC – Tinned Copper | 2 | 1 |
| Conductor Count: | 4 |
Insulation
| Element | Material | Material Trade Name | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|---|
| 22 | HDFPE – High Density Foam Polyethylene | Datalene® | 0.079 in | 0.025 in |
| 18 | FR PVC – Flame Retardant Polyvinyl Chloride | 0.073 in | 0.013 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Blue & White |
| 2 | Red & Black |
Inner Shield Material
| Type | Layer | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | 22 AWG Pair | Aluminum Foil-Polyester Tape | Beldfoil® | 100 % | TC – Tinned Copper | 24 AWG | |
| TC – Tinned Copper | 7×32 mm |
