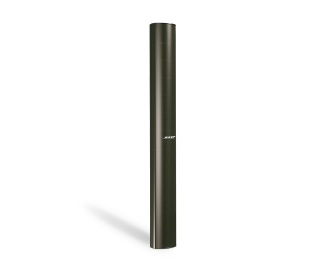

Bose Panaray MA12 Modular Columnar Array loudspeaker Price in Doha Qatar
Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.
For indoor applications only.
- Description
- Reviews (0)
Description
Description
Twelve 2.25″ (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration
Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement
Optional brackets allow easy installation of single-, double- or triple-stack line array modules
Applications
- Houses of worship
- Multi-purpose spaces
- Recreation
- Restaurants and bars
- Auditoriums
- Transportation facilities
- Gymnasiums
- Atriums and malls
SPECS
Technical Summary
Frequency Response (+/-3 dB)
155 Hz – 12 kHz
Frequency Range (-10 dB)
100 Hz – 16 kHz
Nominal Dispersion
145° H x 20° V
Long-Term Power Handling
300 W (1200 W peak)
Sensitivity (SPL / 1 W @ 1 m)
88 dB SPL
Maximum SPL @ 1 m
113 dB SPL (119 dB SPL peak)
Nominal Impedance
8 Ω
