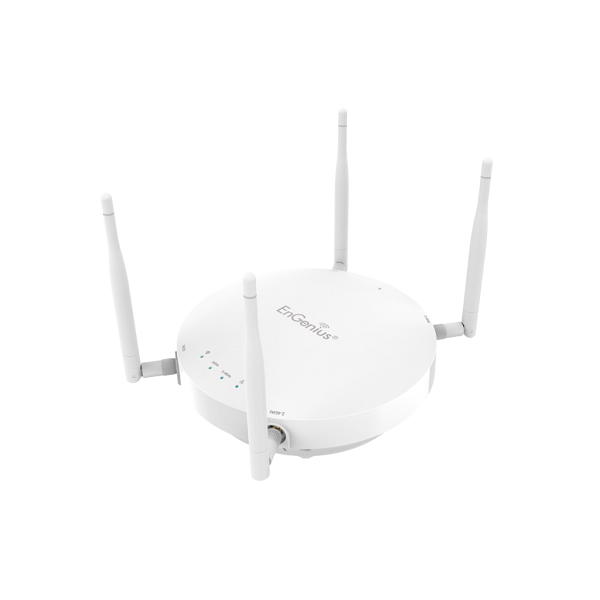

EnGenius EnHero 5 Ultra Range Access Point / Range Extender Wireless Access Point Price in Doha Qatar
Product Highlight
EnHero 5 ultra-range access point and range extender features an onboard quad-core processor for turbocharged wireless speeds of up to 1.3 Gbps and high-gain detachable antennas. It supports accelerated speeds, increased user device capacities, and improved connection reliability that makes next-generation business-class Wi-Fi accessible at an exceptional price.
- Ultra-Range Wireless Coverage
- Maximized Speed with WAVE II Technology
- Multiple Capacities with MU-MIMO
- Multi-Operating Options
- Easy set up via EnWiFi Mobile APP
- Easy set up via Web Wizard
- Description
- Reviews (0)
Description
Description
Technical Specifications
Standards
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
Processor
Qualcomm® 717 MHz Quad-Core CPU
4x ARM Cortex A7
Antenna
2 x 2.4 GHz: 5 dBi
2 x 5 GHz: 5 dBi
Detachable Omni-Directional Antenna
SMA-Type
Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3af Input
IEEE 802.11e Compliant Source
12VDC /1A Power Adapter
Maximum Power Consumption
12W
Surge Protection
0.5KV
Wireless & Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
Access Point Mode (AP mode)
WDS: WDS AP, WDS Bridge
Frequency Radio
2.4 GHz: 2400 MHz ~ 2472 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 15 dBm on 2.4 GHz
Up to 15 dBm on 5 GHz
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2 x 2:2
SU-MIMO
2.4GHz – Two (2) Spatial Stream SU-MIMO up to 400 Mbps to individual 2×2
VHT40 client devices (300 Mbps for HT40 802.11n client devices)
5GHz – Two (2) Spatial Stream SU-MIMO up to 867 Mbps to individual 2×2
VHT40 client devices
MU-MIMO
5GHz – Two (2) Spatial Stream Multi User (MU) MIMO for up to 867Mbps to
two (2) MU-MIMO capable wireless devices simultaneously
Supported Data Rates (Mbps):
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2×2 MIMO with 2 Streams
Channelization
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n Supports Very High Throughput (VHT) under the 2.4 GHz Radio—VHT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: AMPDU, ASPDU
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Management Features
Multiple BSSID
Supports 16 SSIDs (8 SSIDs per Band)
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM
Deployment Options
Stand-Alone (Individually Managed)
Managed Mode (w/ezMaster & Neutron Switch)
Stand-Alone Management Features
Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Band Steering
Traffic Shaping
VLANs for Access Point – Multiple SSIDs
Backup/Restore Settings
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Default
Wireless Management Features (w/ezMaster & Neutron Switch)
AP Auto Discovery & Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP – Multiple SSIDs
Secured Guest Network
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic & Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Control Features
Managed Mode (w/ezMaster/Neutron Switch)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting (802.1x)
Power Save Mode (U-APSD Support)
CLI Support
HTTPS
Wireless Security
WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Environmental & Physical
Temperature Range
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -22 ºF~176 ºF (-30 ºC~80 ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Dimensions & Weight
EnHero5 Device
Weight: 0.65 lbs. (0.29 kg)
Diameter: 6.36” (161.54 mm)
Height: 1.85” (41 mm)
Package Contents
1 – EnHero5 , AC1300 Indoor Access Point
1 – 12V/1A Power Adapter
1 – T-Rail Mounting Kits
1 – Ceiling and Wall Mount Screw Kits
1 – Mounting Brackets
1 – RJ-45 Ethernet Cables
1 – Quick Installation Guide
Certifications
FCC
CE
