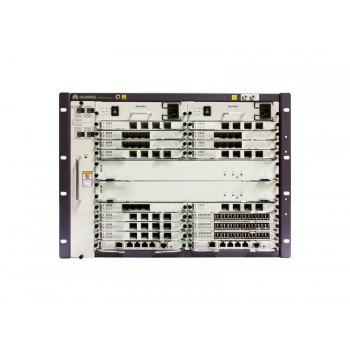

CR2M16BASA13 Specification
|
| Switching Capacity |
480 Gbit/s |
| Forwarding Performance |
360 Mpps |
| Fixed Ports |
— |
| Number of Slots |
|
| Dimensions
(H x W x D) |
13.8 in. x 17.4 in. x 8.6 in. = 8U
(353 mm x 442 mm x 220 mm = 8U) |
| Power consumption (in full configuration) |
696W (DC)
740W (AC) |
| Weight in Full Configuration |
74.9 lb (34.0 kg) (DC)
79.3 lb (36.0 kg) (AC) |
| Interface Types |
- 40 GE
- 10 GE
- GE/FE
- OC-3c/STM-1c POS
- OC-12c/STM-4c POS
- Channelized OC-3/STM-1 POS
- E1/CE1
|
| Clock Synchronization |
Synchronous Ethernet and IEEE 1588v2 |
| Layer 2 Features |
- IEEE 802.1q
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1ab
- STP/RSTP/MSTP
|
| IPv4/IPv6 Routing Protocols |
- IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP
- IPv4/IPv6 dual stack
- IPv4-to-IPv6 transition technologies, such as manual tunnel, 6-to-4 tunnel, and 6PE
- IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6
- IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing
|
| L2/L3 VPN |
- LDP over TE, VPLS, H-VPLS, and VPN policy-based routing
- Martini MPLS L2VPN
- VLL/VPLS accessing L3VPN
- MPLS/BGP L3VPN and inter-AS VPN
|
| Multicast |
- IGMPv1/v2/v3
- IGMP snooping
- IPv6 multicast
- Static multicast routing
- PIM-SM
- PIM-SSM
- MBGP
- NG MVPN
|
| QoS |
- WRED
- Five-level HQoS
- VLL/PWE3 QoS
|
| Reliability |
- NSR for OSPF/RIP/LDP/RSVP-TE/PIM/MSDP/IGMP/ARP/L3VPN/IS-IS/BGP/VLL/VRRP
- GR for BGP/OSPF/IS-IS/LDP/VLL/VPLS/RSVP/L3VPN/PIM
- BFD for static route/fast reroute/VRRP/IS-IS/OSPF/BGP/PIM/LSP/IPv6
- Fast convergence of BGP/IGP/multicast routes
- IP/LDP FRR, TE FRR, VPN FRR, and VLL FRR
- Ethernet OAM, Y.1731, and PWE3 E2E protection
- ISSU and in-service patching for smooth software upgrades
|
| Security
|
- ACL-based packet filtering
- AAA
- SNMPv3 encryption and authentication
- URPF, GTSM, DHCP snooping
- ARP attack defense
- SSHv2
|
| Value-added Services |
NAT, IPSec, GRE, and NetStream |
| OAM |
Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah |
| Operating Temperature |
32°F to 113°F
(0°C to 45°C) |
|
| Operating Relative Humidity |
5% to 85%, non-condensing |
| Operating Altitude |
≤ 9,842.5 ft. (3,000m) |
