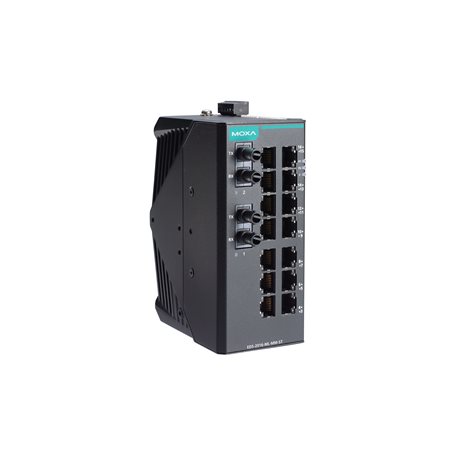

Moxa EDS-2016-ML-MM-ST-T Unmanaged Switch Price in Doha Qatar
Unmanaged Ethernet switch with 14 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with ST connectors, -40 to 75°C operating temperature
- Description
- Reviews (0)
Description
Description
Ethernet Interface
-
10/100BaseT(X) Ports (RJ45 connector)
- EDS-2016-ML: 16
EDS-2016-ML-T: 16
EDS-2016-ML-MM-SC: 14
EDS-2016-ML-MM-SC-T: 14
EDS-2016-ML-MM-ST: 14
EDS-2016-ML-MM-ST-T: 14
EDS-2016-ML-SS-SC: 14
EDS-2016-ML-SS-SC-T: 14Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
- EDS-2016-ML: 16
-
100BaseFX Ports (multi-mode SC connector)
- EDS-2016-ML-MM-SC: 2
EDS-2016-ML-MM-SC-T: 2
- EDS-2016-ML-MM-SC: 2
-
100BaseFX Ports (multi-mode ST connector)
- EDS-2016-ML-MM-ST: 2
EDS-2016-ML-MM-ST-T: 2
- EDS-2016-ML-MM-ST: 2
-
100BaseFX Ports (single-mode SC connector)
- EDS-2016-ML-SS-SC: 2
EDS-2016-ML-SS-SC-T: 2
- EDS-2016-ML-SS-SC: 2
-
Standards
- IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service
- IEEE 802.3 for 10BaseT
DIP Switch Configuration
-
Ethernet Interface
- Quality of Service (QoS)
Broadcast storm protection
Port break alarm
- Quality of Service (QoS)
Input/Output Interface
-
Alarm Contact Channels
- Relay output with current carrying capacity of 1 A @ 24 VDC
Switch Properties
-
MAC Table Size
- 8 K
-
Packet Buffer Size
- 2 Mbits
-
Processing Type
- Store and Forward
Power Parameters
-
Connection
- 1 removable 6-contact terminal block(s)
-
Input Voltage
- 12/24/48 VDC
Redundant dual inputs
- 12/24/48 VDC
-
Operating Voltage
- 9.6 to 60 VDC
-
Overload Current Protection
- Supported
-
Reverse Polarity Protection
- Supported
Physical Characteristics
-
Housing
- Metal
-
IP Rating
- IP30
-
Weight
- Non-fiber models: 486 g (1.07 lb)
Fiber models: 648 g (1.43 lb)
- Non-fiber models: 486 g (1.07 lb)
-
Installation
- DIN-rail mounting
Wall mounting (with optional kit)
- DIN-rail mounting
Environmental Limits
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
Safety
- UL 61010-2-201
EN 62368-1(LVD)
- UL 61010-2-201
-
EMC
- EN 55032/35
EN 61000-6-2/-6-4
- EN 55032/35
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
-
Hazardous Locations
- Class I Division 2
ATEX
IECEx
- Class I Division 2
-
Railway
- EN 50121-4
-
Vibration
- IEC 60068-2-6
-
Shock
- IEC 60068-2-27
-
Freefall
- IEC 60068-2-32
-
Maritime
- DNV
LR
ABS
NK
- DNV
MTBF
-
Time
- 2,070,826 hrs
-
Standards
- Telcordia (Bellcore), GB
Warranty
-
Warranty Period
- 5 years
