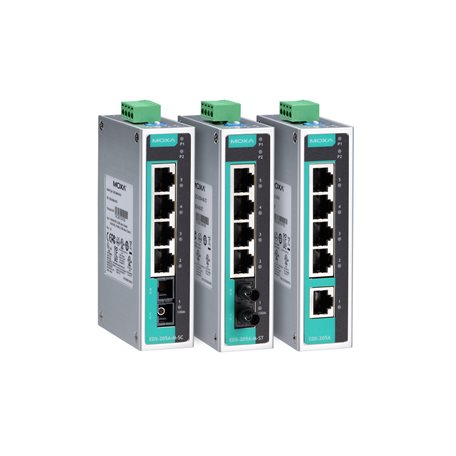

Moxa EDS-205A Unmanaged Switch Price in Doha Qatar
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/GL/LR/ABS/NK)
- -40 to 75°C operating temperature range (-T models)
- Description
- Reviews (0)
Description
Description
Ethernet Interface
-
10/100BaseT(X) Ports (RJ45 connector)
EDS-205A/205A-T: 5
EDS-205A-M-SC/M-ST/S-SC Series: 4All models support:
Auto negotiation speed
Full/half duplex mode
Auto MDI/MDI-X connection -
100BaseFX Ports (multi-mode SC connector)
EDS-205A-M-SC Series: 1
-
100BaseFX Ports (multi-mode ST connector)
EDS-205A-M-ST Series: 1
-
100BaseFX Ports (single-mode SC connector)
EDS-205A-S-SC Series: 1
-
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Switch Properties
-
MAC Table Size
1 K
-
Packet Buffer Size
384 kbits
-
Processing Type
Store and Forward
Power Parameters
-
Connection
1 removable 4-contact terminal block(s)
-
Input Current
EDS-205A/205A-T: 0.09 A @ 24 VDC
EDS-205A-M-SC/M-ST/S-SC Series: 0.1 A @ 24 VDC -
Input Voltage
12/24/48 VDC, Redundant dual inputs
-
Operating Voltage
9.6 to 60 VDC
-
Overload Current Protection
Supported
-
Reverse Polarity Protection
Supported
DIP Switch Configuration
-
Ethernet Interface
Broadcast storm protection
Physical Characteristics
-
Housing
Aluminum
-
IP Rating
IP30
-
Dimensions
30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
-
Weight
175 g (0.39 lb)
-
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
-
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) -
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
-
EMC
EN 55032/24
-
EMI
CISPR 32, FCC Part 15B Class A
-
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF -
Hazardous Locations
IECEx, ATEX, Class I Division 2
-
Maritime
ABS, DNV-GL, LR, NK
-
Railway
EN 50121-4
-
Safety
UL 508
-
Shock
IEC 60068-2-27
-
Traffic Control
NEMA TS2
-
Vibration
IEC 60068-2-6
-
Freefall
IEC 60068-2-31
MTBF
-
Time
3,040,784 hrs
-
Standards
Telcordia (Bellcore), GB
Warranty
-
Warranty Period
5 years
