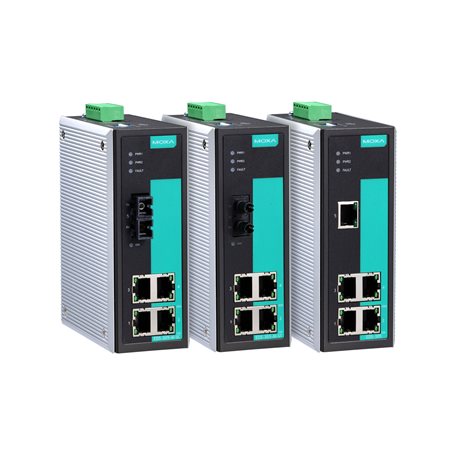

Moxa EDS-305 Unmanaged Switch Price in Doha Qatar
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C operating temperature range (-T models)
- Description
- Reviews (0)
Description
Description
Input/Output Interface
-
Alarm Contact Channels
1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
-
10/100BaseT(X) Ports (RJ45 connector)
EDS-305/305-T: 5
EDS-305-M-SC/M-ST/S-SC Series, EDS-305-S-SC-80: 4All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection -
100BaseFX Ports (multi-mode SC connector)
EDS-305-M-SC Series: 1
-
100BaseFX Ports (multi-mode ST connector)
EDS-305-M-ST Series: 1
-
100BaseFX Ports (single-mode SC connector)
EDS-305-S-SC: 1
EDS-305-S-SC-T: 1 -
100BaseFX Ports (single-mode SC connector, 80 km)
EDS-305-S-SC-80: 1
-
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
DIP Switch Configuration
-
Ethernet Interface
Port break alarm
Switch Properties
-
MAC Table Size
1 K
-
Packet Buffer Size
384 K
-
Processing Type
Store and Forward
Power Parameters
-
Input Current
EDS-305/305-T: 0.11 A @ 24 VDC
EDS-305-M/S Series: 0.15 A @ 24 VDC -
Connection
1 removable 6-contact terminal block(s)
-
Operating Voltage
12 to 48 VDC
-
Input Voltage
24 VDC, Redundant dual inputs
-
Reverse Polarity Protection
Supported
-
Overload Current Protection
Supported
Physical Characteristics
-
Housing
Metal
-
IP Rating
IP30
-
Dimensions
53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
-
Weight
790 g (1.75 lb)
-
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
-
Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) -
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
-
Hazardous Locations
ATEX, Class I Division 2
-
EMI
CISPR 32, FCC Part 15B Class A
-
Maritime
DNV-GL
-
EMC
EN 55032/24
-
Vibration
IEC 60068-2-6
-
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF -
Safety
UL 508, UL 60950-1, CSA C22.2 No. 60950-1
-
Shock
IEC 60068-2-27
-
Freefall
IEC 60068-2-32
MTBF
-
Time
422,742 hrs
-
Standards
MIL-HDBK-217F
Warranty
-
Warranty Period
5 years
