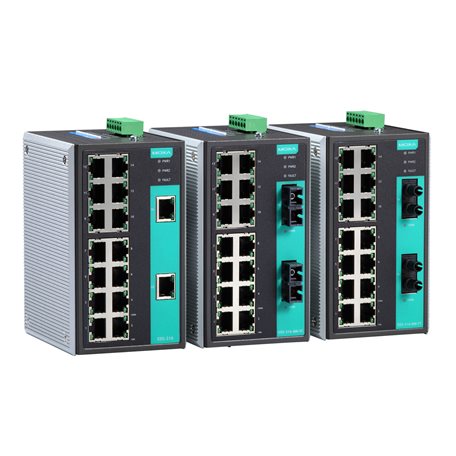

Moxa EDS-316 Unmanaged Switch Price in Doha Qatar

Moxa EDS-316 Unmanaged Switch Price in Doha Qatar

  • Relay output warning for power failure and port break alarm
  •  Broadcast storm protection
  •  -40 to 75°C wide operating temperature range (-T models)
SKU: EDS-316 Category:

Description

Input/Output Interface

  • Alarm Contact Channels

    1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    EDS-316 models: 16
    EDS-316-MM-SC/MM-ST/MS-SC/SS-SC models: 14
    EDS-316-SS-SC-80 models: 14
    EDS-316-M-SC/M-ST/S-SC models: 15

    All models support:
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 100BaseFX Ports (multi-mode SC connector)

    EDS-316-M-SC models: 1
    EDS-316-MM-SC models: 2
    EDS-316-MS-SC models: 1

  • 100BaseFX Ports (multi-mode ST connector)

    EDS-316-M-ST models: 1
    EDS-316-MM-ST models: 2

  • 100BaseFX Ports (single-mode SC connector)

    EDS-316-MS-SC models: 1
    EDS-316-S-SC models: 1
    EDS-316-SS-SC models: 2

  • 100BaseFX Ports (single-mode SC connector, 80 km)

    EDS-316-SS-SC-80 models: 2

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control

DIP Switch Configuration

  • Ethernet Interface

    Port break alarm

Switch Properties

  • Packet Buffer Size

    1.25 Mbits

  • MAC Table Size

    4 K

  • Processing Type

    Store and Forward

Power Parameters

  • Input Current

    Non-fiber models: 0.34 A @ 24 VDC
    Fiber models: 0.4 A @ 24 VDC

  • Connection

    1 removable 6-contact terminal block(s)

  • Operating Voltage

    9.6 to 60 VDC

  • Input Voltage

    12/24/48 VDC
    Redundant dual inputs

  • Reverse Polarity Protection

    Supported

  • Overload Current Protection

    Supported

Physical Characteristics

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)

  • Weight

    1140 g (2.52 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

Standards and Certifications

  • Hazardous Locations

    ATEX
    Class I Division 2

  • EMI

    CISPR 32, FCC Part 15B Class A

  • Maritime

    DNV

  • EMC

    EN 55032/24

  • Vibration

    IEC 60068-2-6

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    UL 508
    UL 60950-1
    CSA C22.2 No. 60950-1

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

MTBF

  • Time

    257,516 hrs

  • Standards

    MIL-HDBK-217F

Warranty

  • Warranty Period

    5 years
