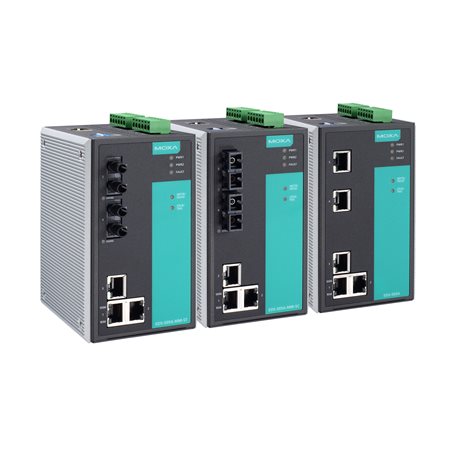

Moxa EDS-505A Layer 2 Managed Switch Price in Doha Qatar
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- Supports MXstudio for easy, visualized industrial network management
- Description
- Reviews (0)
Description
Description
Input/Output Interface
-
Alarm Contact Channels
2, Relay output with current carrying capacity of 1 A @ 24 VDC
-
Digital Input Channels
2
-
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA -
Buttons
Reset button
Ethernet Interface
-
10/100BaseT(X) Ports (RJ45 connector)
EDS-505A/505A-T: 5
EDS-505A-MM-SC/MM-ST/SS-SC Series: 3All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection -
100BaseFX Ports (multi-mode SC connector)
EDS-505A-MM-SC Series: 2
-
100BaseFX Ports (multi-mode ST connector)
EDS-505A-MM-ST Series: 2
-
100BaseFX Ports (single-mode SC connector)
EDS-505A-SS-SC Series: 2
-
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
-
Filter
802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP
-
Industrial Protocols
EtherNet/IP, Modbus TCP
-
Management
IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP
-
MIB
MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
-
Redundancy Protocols
STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
-
Security
HTTPS/SSL, RADIUS, TACACS+, Port Lock, SSH, Broadcast storm protection
-
Time Management
NTP Server/Client, SNTP
Switch Properties
-
IGMP Groups
256
-
MAC Table Size
8 K
-
Max. No. of VLANs
64
-
Packet Buffer Size
1 Mbits
-
Priority Queues
4
-
VLAN ID Range
VID 1 to 4094
LED Interface
-
LED Indicators
PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL
Serial Interface
-
Console Port
RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
-
Ethernet Interface
Turbo Ring, Master, Coupler, Reserve
Power Parameters
-
Connection
2 removable 6-contact terminal block(s)
-
Input Voltage
12/24/48 VDC, Redundant dual inputs
-
Operating Voltage
9.6 to 60 VDC
-
Input Current
EDS-505A/EDS-505A-T: 0.21 A @ 24 VDC
EDS-505A-MM-SC/MM-ST/SS-SC Series: 0.29 A @ 24 VDC -
Overload Current Protection
Supported
-
Reverse Polarity Protection
Supported
Physical Characteristics
-
Housing
Metal
-
IP Rating
IP30
-
Dimensions
80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
-
Weight
1040 g (2.3 lb)
-
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
-
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) -
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
-
Safety
EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1, UL 508
-
Hazardous Locations
ATEX, Class I Division 2
-
EMC
EN 55032/24
-
EMI
CISPR 32, FCC Part 15B Class A
-
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF -
Shock
IEC 60068-2-27
-
Freefall
IEC 60068-2-31
-
Vibration
IEC 60068-2-6
MTBF
-
Time
1,090,077 hrs
-
Standards
Telcordia (Bellcore), GB
Warranty
-
Warranty Period
5 years
