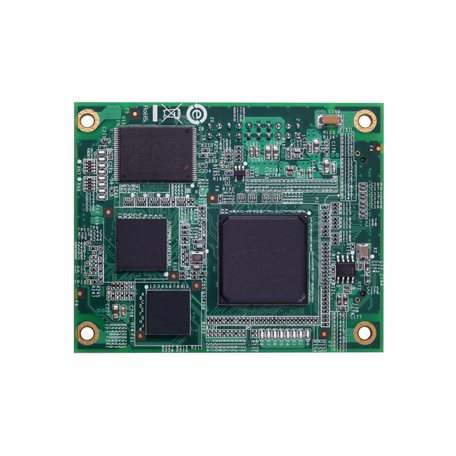

Moxa EOM-G103-PHR-PTP Ethernet Embedded Module Price in Doha Qatar
IEC 62439-3 managed redundancy module with 3 SGMII pinouts reserved for 2 IEC 62439-3 ports and 1 standard Ethernet port, with an extra 1 SGMII reserved for Ethernet console connection, 3.3 V operating power input voltage, -40 to 85°C operating temperature
- Description
- Reviews (0)
Description
Description
Ethernet Interface
-
Standards
- IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
- IEEE 802.3ab for 1000BaseT(X)
-
Ethernet Interface
- 3, SGMII (MAC mode) / SerDes (1000BaseX) (PRP/HSR LAN A/LAN B/INTERLINK)
-
Connector
- 1 connector with 2 x 40 pins, and 1 connector with 2 x 10 pins
-
GPIO
- 3 x Programmable I/O pins
Ethernet Software Features
-
Redundancy Protocols
- HSR, PRP
Serial Interface
-
Console Port
- Ethernet console (SGMII (MAC mode) / SerDes (1000BaseX))
Power Parameters
-
Input Current
- 0.49 A @ 3.3 VDC
Physical Characteristics
-
Dimensions
- 80 x 1.6 x 65 mm (3.15 x 0.06 x 2.56 in)
-
Weight
- 28.6 g (0.06 lb)
Environmental Limits
-
Operating Temperature
- -40 to 60°C (-40 to 140°F)
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
- EN 55032 Class A
-
EMI
- CISPR 32, FCC Part 15B Class A
