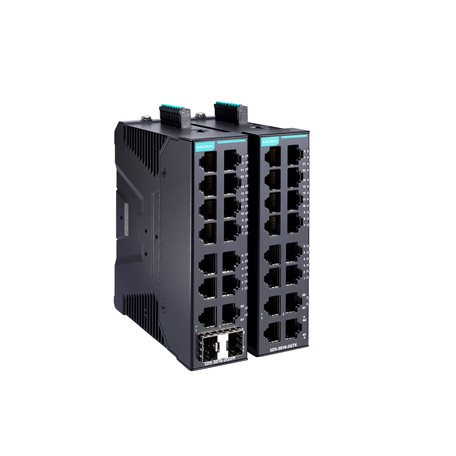

Moxa SDS-3016 Layer 2 Smart Switch Price in Doha Qatar
- Compact and flexible housing design to fit into confined spaces
- Web-based GUI for easy device configuration and management
- Port diagnostics with statistics to detect and prevent issues
- Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French
- Supports RSTP/STP for network redundancy
- Supports MRP client redundancy based on IEC 62439-2 to ensure high network availability
- EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported for easy integration and monitoring in automation HMI/SCADA systems
- IP port binding to ensure critical devices can be replaced quickly without reassigning the IP Address
- Rotary DIP switch can perform profile-based settings without using a web browser
- Description
- Reviews (0)
Description
Description
Input/Output Interface
-
Alarm Contact Channels
1, Relay output with current carrying capacity of 1 A @ 24 VDC
-
Buttons
Reset button
-
Digital Input Channels
1
-
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
-
10/100BaseT(X) Ports (RJ45 connector)
14
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection -
10/100/1000BaseT(X) Ports (RJ45 connector)
2 (SDS-3016-2GTX Series)
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection -
100/1000BaseSFP Ports
2 (SDS-3016-2GSFP Series)
-
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
Ethernet Software Features
-
Industrial Protocols
EtherNet/IP, Modbus TCP, PROFINET IO Device
-
Management
Back Pressure Flow Control, DHCP Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, SNMP Inform, SNMPv1/v2c/v3, Syslog
-
MIB
RFC1213, Ethernet-like MIB, IF MIB, LLDP MIB, Bridge MIB, Q-BRIDGE MIB
-
Redundancy Protocols
RSTP, STP, MRP (Client)
-
Security
Broadcast storm protection, HTTPS/SSL, SNMPv3, Port Lock
-
Time Management
NTP Server/Client, SNTP
-
Filter
802.1Q VLAN
Switch Properties
-
MAC Table Size
8 K
-
Max. No. of VLANs
8
-
VLAN ID Range
VID 1 to 4094
-
Packet Buffer Size
3 Mbits
USB Interface
-
Storage Port
USB Type A
LED Interface
-
LED Indicators
PWR1, PWR2, STATE, FAULT, 10/100M, 1000M (TP Port)
Power Parameters
-
Connection
2 removable 4-contact terminal block(s)
-
Input Voltage
12/24/48/-48 VDC, Redundant dual inputs
-
Operating Voltage
9.6 to 60 VDC
-
Input Current
SDS-3016-2GTX series: 12-48 VDC, 0.858 A (max.)
SDS-3016-2GSFP series: 12-48 VDC, 0.99 A (max.) -
Overload Current Protection
Supported
-
Reverse Polarity Protection
Supported
Physical Characteristics
-
Housing
Metal
-
IP Rating
IP40
-
Dimensions
36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
-
Weight
590 g (1.3 lb)
-
Installation
DIN-rail mounting
Environmental Limits
-
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) -
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
-
EMC
EN 55032/35, EN 61000-6-2/-6-4
-
EMI
CISPR 32, FCC Part 15B Class A
-
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF: 30 A/m -
Safety
EN 62368-1, UL 61010-2-201
-
Shock
IEC 60068-2-27
-
Freefall
IEC 60068-2-32
-
Vibration
IEC 60068-2-6
MTBF
-
Time
1,109,179 hrs
-
Standards
Telcordia (Bellcore), GB
Warranty
-
Warranty Period
5 years
