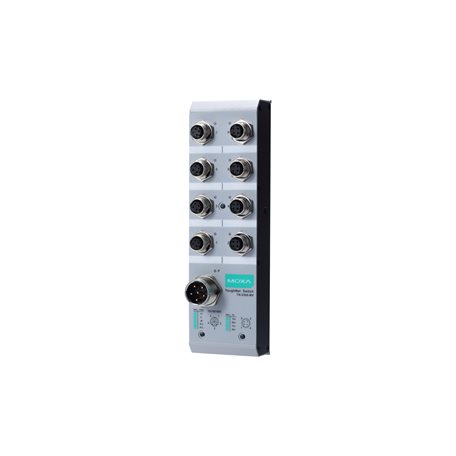

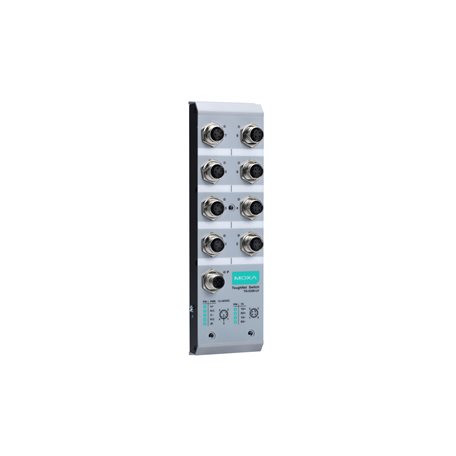

Moxa TN-5308 Unmanaged Switch Price in Doha Qatar
- M12 connectors and IP40 metal housing
- Up to 8 IEEE 802.3af compliant PoE and Ethernet combo ports
- Supports IEEE 802.3/802.3u/802.3x
- Complies with all EN 50155 mandatory test items
- Description
- Reviews (0)
Description
Description
Ethernet Interface
-
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
TN-5308 Series non-PoE models: 8
-
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)
TN-5308-4PoE Series: 4
TN-5308-8PoE Series: 8 -
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
TN-5308 Series PoE models: IEEE 802.3af for PoE
Power Parameters
-
Input Current
TN-5308-LV Series: 0.19 A @ 12 VDC, 0.10 A @ 24 VDC, 0.05 A @ 48 VDC
TN-5308-MV Series: 0.033 A @ 72 VDC, 0.024 A @ 96 VDC, 0.021 A @ 110 VDC
TN-5308-4PoE Series: 1.6 A @ 48 VDC
TN-5308-8PoE Series: 2.9 A @ 48 VDC -
Input Voltage
TN-5308-LV Series: 12 to 48 VDC
TN-5308-MV Series: 72 to 110 VDC
PoE models: 48 VDC -
Max. PoE Power Output per Port
TN-5308 Series PoE models: 15.4 W
-
No. of Power Inputs
1
-
Operating Voltage
TN-5308-LV Series: 8.4 to 60 VDC
TN-5308-MV Series: 50.4 to 137.5 VDC
TN-5308 Series PoE models: 46 to 50 VDC -
Power Connector
TN-5308-LV Series and TN-5308 Series PoE models: M12 A-coded male connector
TN-5308-MV Series: M23 connector
Physical Characteristics
-
Housing
Metal
-
IP Rating
IP40
-
Dimensions
TN-5308-LV Series: 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in)
TN-5308-MV Series: 60 x 216.6 x 53.8 mm (2.36 x 8.53 x 2.12 in)
TN-5308-4PoE Series: 60 x 216.6 x 48.7 mm (2.36 x 8.53 x 1.91 in)
TN-5308-8PoE Series: 60 x 216.6 x 52.9 mm (2.36 x 8.53 x 2.1 in) -
Weight
TN-5308-LV Series: 485 g (1.07 lb)
TN-5308-MV Series: 685 g (1.51 lb)
TN-5308-4PoE Series: 675 g (1.49 lb)
TN-5308-8PoE Series: 970 g (2.14 lb) -
Installation
DIN-rail mounting (with optional kit), Wall mounting
-
Protection
TN-5308 Series -CT models: PCB conformal coating
Environmental Limits
-
Operating Temperature
Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) -
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing)
-
Altitude
2000 m
Standards and Certifications
-
Freefall
IEC 60068-2-32
-
EMC
EN 55032/24
-
EMI
CISPR 32, FCC Part 15B Class A
-
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF -
Environmental Testing
IEC 60068-2-1, EN 50155
IEC 60068-2-14, EN 50155
IEC 60068-2-2, EN 50155
IEC 60068-2-30, EN 50155 -
International Approval
RCM
-
Railway
EN 50121-4, EN 50155
-
Railway Fire Protection
EN 45545-2
-
Safety
EN 60950-1, UL 508
-
Salt Spray Test
IEC 60068-2-11, EN 50155
-
Shock
IEC 60068-2-27, IEC 61373, EN 50155
-
Vibration
IEC 60068-2-64, IEC 61373, EN 50155
Declaration
-
Green Product
RoHS, CRoHS, WEEE
MTBF
-
Time
TN-5308-LV Series: 2,099,286 hrs
TN-5308-MV Series: 2,590,858 hrs
TN-5308-4PoE Series: 252,075 hrs
TN-5308-8PoE Series: 308,392 hrs -
Standards
Telcordia SR332
Warranty
-
Warranty Period
5 years
