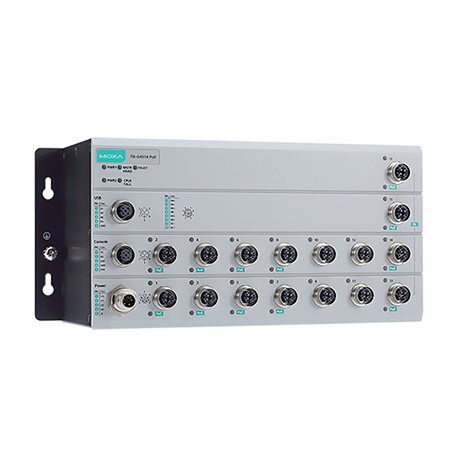

Moxa TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-T PoE Switch Price in Doha Qatar

moxa-tn-g4516-8gpoe-2xgpoe-2xgtxbp-wv-t-image

Moxa TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-T PoE Switch Price in Doha Qatar

Moxa TN-G6512-8GPoE-WV-T PoE Switch Price in Doha Qatar
Moxa TN-G4516-8GPoE-4XGPoE-WV-T PoE Switch Price in Doha Qatar
0 out of 5
( There are no reviews yet. )

EN 50155 Layer 2 multi-Gigabit switch with 4 Gigabit Ethernet ports, 8 Gigabit Ethernet PoE+ ports, 2 10G Ethernet PoE+ ports, 2 10G Ethernet ports with bypass relay, 120 W PoE power budget, 24 to 110 VDC power input, IP40, -40 to 70°C operating temperature

SKU: TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-T Category:

Description

Ethernet Interface

  • 10GBaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)

    • TN-G4516 BP models: 2

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    • 4

  • PoE Ports (10GBaseT(X), M12 X-coded 8-pin female connector)

    • TN-G4516 non-BP models: 4
      TN-G4516 BP models: 2

  • PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)

    • 8

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3bz for 5GBaseT and 2.5GBaseT
      IEEE 802.3an for 10GBaseT
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3af/at for PoE/PoE+ output
      IEEE 802.3x for flow control
Ethernet Software Features

  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding

  • Configuration Options

    • Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility

  • Filter

    • 802.1Q
      GMRP
      GVRP
      IGMP v1/v2
      Port-based VLAN
      Static Multicast

  • Industrial Protocols

    • SNMPv1/v2c/v3

  • Management

    • Account Management
      Back Pressure Flow Control
      DHCP Option 66/67/82
      DHCP Server/Client
      Flow control
      HTTP
      IPv4/IPv6
      LLDP
      Port Mirror
      QoS/CoS/ToS
      RARP
      RMON
      SMTP
      SNMP Inform
      Syslog
      Telnet
      SNMP Trap

  • MIB

    • Bridge MIB
      Ethernet-like MIB
      MIB-II
      P-BRIDGE MIB
      Q-BRIDGE MIB
      RMON MIB Groups 1, 2, 3, 9
      RSTP MIB

  • Redundancy Protocols

    • Link Aggregation
      MSTP
      RSTP
      STP
      Turbo Chain
      Turbo Ring v1/v2
      Turbo Ring with DRC

  • Security

    • TACACS+
      Broadcast storm protection
      HTTPS/SSL
      Local Account Accessibility
      Port Lock
      RADIUS
      Rate Limit
      SSH

  • Time Management

    • NTP Server/Client
      SNTP
Switch Properties

  • IGMP Groups

    • 256

  • Max. No. of VLANs

    • 256

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094

  • Jumbo Frame Size

    • 9.216 KB
LED Interface

  • LED Indicators

    • PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE
Serial Interface

  • Console Port

    • RS-232 (M12 B-coded 5-pin female connector)
Power Parameters

  • Input Voltage

    • 24/36/48/72/96/110 VDC

  • No. of Power Inputs

    • 2

  • Operating Voltage

    • 16.8 to 137.5 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported

  • Total PoE Power Budget

    • 120 W

  • Input Current

    • 7.5 A @ 24 VDC

  • Power Connector

    • M12 K-coded 5-pin male connector
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP40

  • Dimensions

    • 291.6 x 117.7 x 132.2 mm (11.48 x 4.63 x 5.20 in)

  • Weight

    • TN-G4516 without bypass: 2,730g(6.02lb)
      TN-G4516 with bypass: 2,740g(6.04lb)

  • Installation

    • Wall mounting

  • Protection

    • -CT model with PCB conformal coating
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • 2000 m
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 6 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Freefall

    • IEC 60068-2-31

  • Radio Frequency

    • FCC

  • Railway

    • EN 50121-4
      EN 50155
      IEC 60571

  • Railway Fire Protection

    • EN 45545-2

  • Safety

    • IEC 62368-1
      UL 62368-1

  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • TN-G4516 without bypass: 436,136 hrs
      TN-G4516 with bypass: 435,764 hrs

  • Standards

    • Telcordia SR332
Warranty

  • Warranty Period

    • 5 years
